Press on, with speed and confidence
Connecting heavy-duty steel pipes by threading and welding is labour-intensive, time-consuming and risky, and can leave a huge mess to clean up. That’s where the Brymec comes in. Our Heavy Duty Steel Press solution is by far the safest, fastest and most efficient tube connection method for numerous water and air applications, and it performs equally well on new installations and retrofits.
Makes life easier in every way
With no need for threading, welding, or hot works, Brymec Heavy Duty Steel Press solutions provide hassle-free performance from start to finish.
Don’t be pressed for time
With an uncomplicated press system, it’s 60% faster than steel pipe installations, freeing up valuable time on site and helping keep projects on track and budget.
Rest assured leaks won’t be a problem
Our leak path feature immediately reveals leaks, and for extra peace of mind, you can also identify an unpressed joint by checking its additional press indicator foil.
Press ahead with confidence
It’s extremely safe, durable, and resistant to fire, impact, corrosion and pressure.
Reliability. Immediate and long-term
As joint adjustment isn’t required post-install, our range is immediately reliable. With a 20-year warranty, you can rest assured they’ll stay that way.
No mess means less fuss
Joints are grease-free and can be painted immediately if required, without the need to remove oil. Clean jointing also means less flushing, and in turn, less water and energy use.
Works perfectly with existing systems
Compatible with thick-walled steel pipes commonly found in older buildings, our fittings are ideal for retrofit projects.
Helping you press ahead with numerous jobs
Brymec Heavy Duty Steel Press provides exceptional performance in the following applications:
- Closed Heating systems
- Closed cooling systems
- Sprinkler systems
- Class 1 compressed air systems
- Class 2 compressed air system (when assembled with an internal galvanised steel tube
- Hot water
- Steam
They work equally well on seamless, welded, black, galvanised, epoxy-resin coated and industrially painted pipes.
Threaded Vs. Press Fittings?
Enjoy our latest jointing video which compares installing steel pipe with threaded fittings against press fittings.
One is 60% faster than the other – see it for yourself.

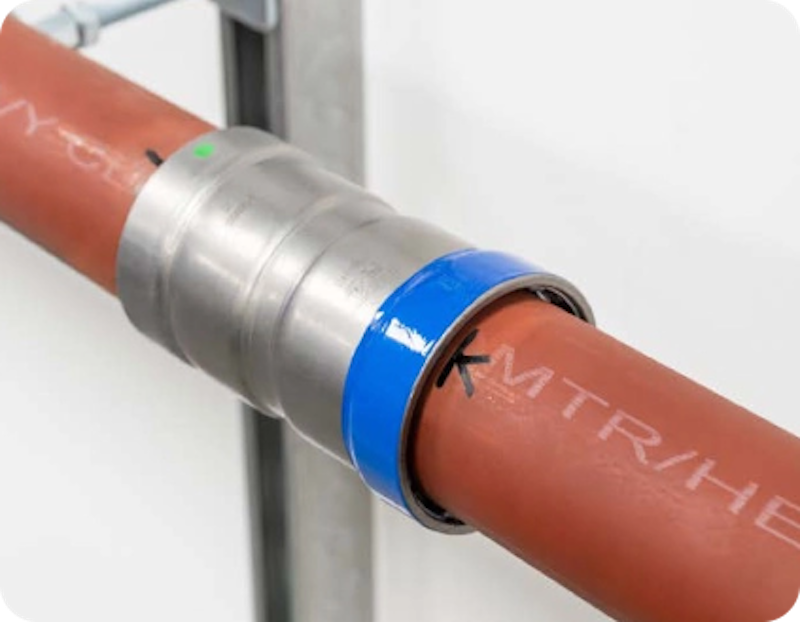

Manufactured to Deliver
Fittings are made from high-grade carbon steel with an extremely tough zinc-nickel alloy coating for superior corrosion resistance, and are combined with plain-end, heavy-duty steel tube to create a full system.

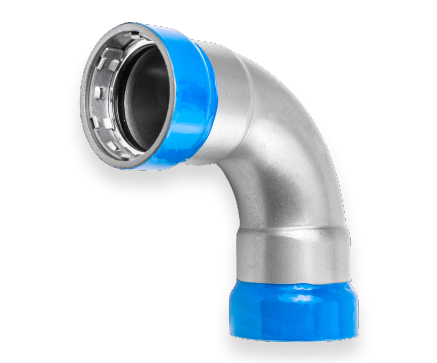

1. Flow-optimised fittings
High-grade carbon steel with a tough zinc-nickel alloy coating for superior corrosion resistance.
2. Anchor ring
420 grade stainless steel, with a tooth profile, for maximum capability and connection strength.
3. Safeguard ring
Chrome-plated copper, for maximising the sealing assembly integrity during installation.
4. EPDM O-Ring
For long-lasting joint security and the extra security of leak path protection.
5. Press-Sure Indicator Foil
For immediate visual confirmation that joints are completed.
A perfect fit
Our Heavy Duty Steel Press range is the ideal partner to our range of carbon steel tubes, which are manufactured to EN10217-2 and EN10255 standards to satisfy the Pressure Equipment Directive (PED) and the Construction Products Regulations (CPR).

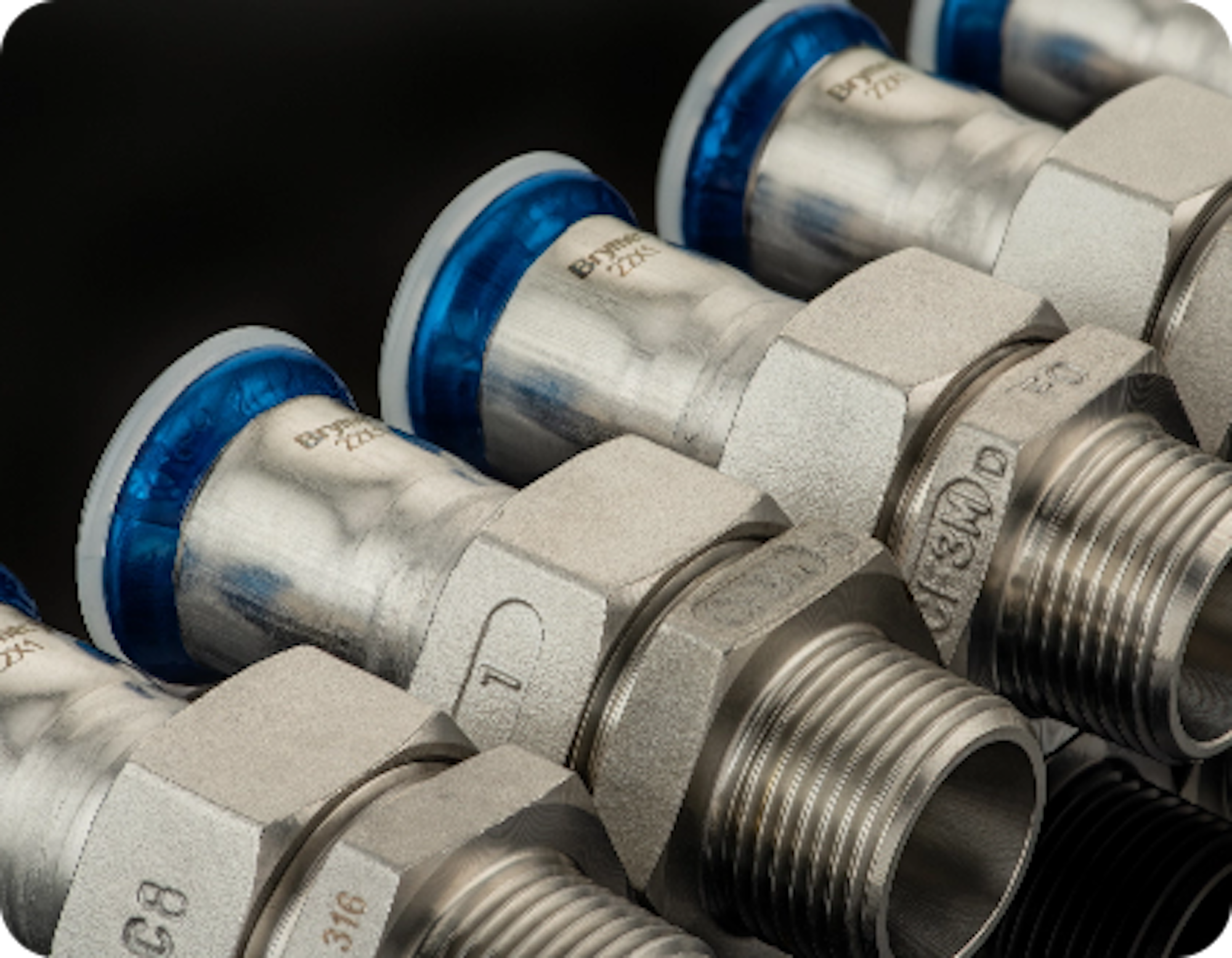

An essential extension to our press solution range
You can now get all your press-fit solutions from us in a single order – whether it’s Copper Press, Copper Press Gas, Multilayer Press, or Stainless Steel Press – regardless of the type and complexity of installation. This will save even more time, not just with ordering but also when fitting, as they can be installed utilising your existing press tools, provided they’re paired with the correct press jaws and collars.
Saving Time is a Breeze
Brymec Breeze brings new levels of efficiency and profitability to every project.
With Brymec Breeze, we’ve removed all middlemen from our supply chain model, which means all Brymec Heavy Duty Steel Press solutions are delivered directly to the building site from our central distribution centre. You also benefit from a single point of contact, fast turnaround and delivery, and more.
If you’d like more information, or a discovery call to discuss how Brymec Heavy Duty Steel Press can help with a project please fill out the form.
