A new chapter for more efficient Plant Room Equipment
At Brymec, we’re proud to have acquired Stokvis®, a highly respected manufacturer of plate heat exchangers and energy system products. This premium brand strengthens our ability to support projects with modern energy solutions, particularly in district heating networks.
In launching Stokvis by Brymec, we now offer wider plant room solutions, supporting projects from design through to delivery. The flexibility of the range allows us to cover a wide scope of applications, including domestic hot water services, low temperature hot water, steam to water and complex process heating.
Together, this enables us to deliver efficient, reliable systems that support a more sustainable built environment.
Packaged Plate Heat Exchangers (PHE)
Stokvis Econoplate®
Stokvis Econoplate® packaged plate heat exchangers (PHEs) provide a complete, ready to install solution for domestic hot water applications. Designed for efficiency and ease of integration, they combine high performance heat transfer with intelligent controls to deliver reliable hot water production across a wide range of commercial projects.
Available in both instantaneous and semi-instantaneous configurations, these units can be tailored to suit system requirements, whether operating independently or alongside a DHW storage vessel.
Key features:
- WRAS approved and compliant with drinking water standards
- Wide output range from 30 kW to 900 kW, suitable for a variety of applications
- User-friendly controls with fast response for accurate temperature regulation
- Low energy consumption pumps and reduced scaling for efficient operation
- Easy maintenance and the ability to expand capacity by adding plates
- 2 year warranty
- 65 standard configurations available with a 3 to 4 week lead time
- Further options available by design

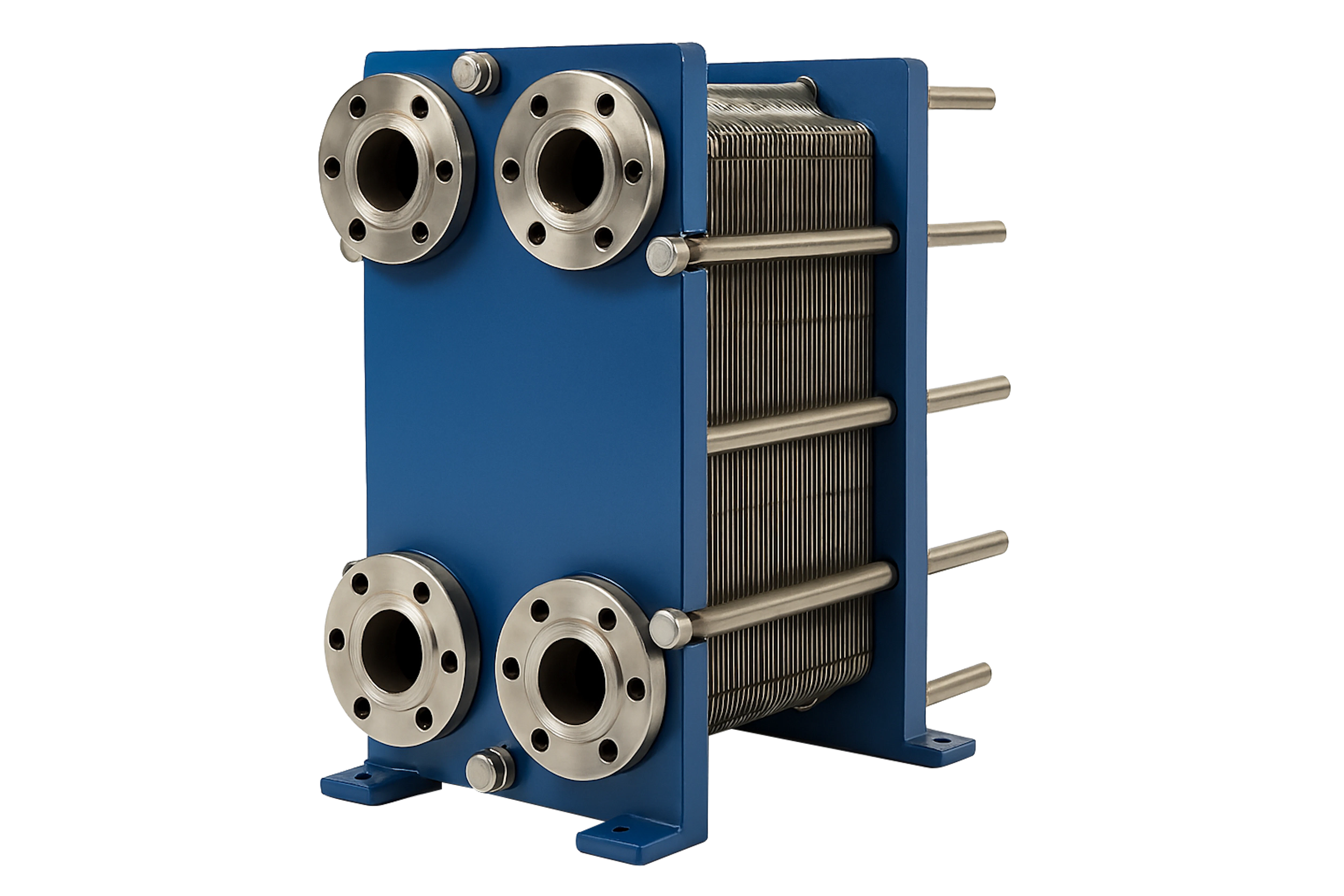

Gasketed Bare Plate Heat Exchangers
Stokvis Econobare
Stokvis Econobare gasketed plate heat exchangers offer a highly efficient and flexible solution for projects where performance and adaptability are key. Their modular plate and frame design allows units to be configured to suit specific system requirements, making them ideal for both new installations and upgrades.
Key features:
- High thermal efficiency for improved system performance
- Compact footprint, ideal for space constrained plant rooms
- Flexible design allowing easy adaptation or expansion
- Wide output range from 30 kW to 1000 kW, suitable for a variety of applications
- Lower operating costs through reduced energy consumption
- Easy access for maintenance, cleaning and servicing
- Suitable for a wide range of heating, cooling and process applications
- Available on a 2 to 6 week lead time
Brazed Plate Heat Exchangers
Brazed plate heat exchangers provide a compact, efficient and low maintenance solution for modern plant room applications. Available in both copper brazed and 100% stainless steel designs, they offer flexibility across a wide range of environments and system requirements.
Their robust, gasket-free construction delivers reliable long-term performance, making them ideal as condensers, evaporators, economisers and single phase heat exchangers across a variety of applications.
Key features:
- High efficiency design, with nearly all material dedicated to heat transfer for maximum performance
- Compact and flexible, allowing easy installation and integration into space constrained plant rooms
- Gasket free construction, improving reliability and reducing maintenance requirements
- Lower lifecycle costs through reduced energy use, maintenance and installation time
- Self-cleaning performance in many applications due to highly turbulent flow
- 2 to 6 week lead time
Packaged Buffer Vessels
Stokvis Econostor®
EconoStor® is a compact, pre-assembled system that delivers semi-instantaneous domestic hot water to larger buildings, with outputs up to 230 kW. It combines a plate heat exchanger, charging kit and stainless steel storage tank in one package. That reduces design time, site assembly and the number of components to coordinate.
EconoStor® can be connected to a district heating network or a local heat source. It is designed to run efficiently on low- to mid-capacity heat sources.
Key features
- Pre-assembled charging kit, ready to mount on the storage tank
- Stainless steel storage tank, 300–1,500 litres
- Choice of plate heat exchanger: copper-brazed, or fully stainless steel fusion-bonded (AlfaNova)
- Charging kit available with or without a 2-port or 3-port control valve
- Optional electronic or self-actuated control
- Simple, robust design for straightforward installation and maintenance
Buffer Vessels
Stokvis Econotherm®
Stovis Econotherm® buffer vessels are a key part of efficient plant room design, helping to improve system stability, performance and longevity. Acting as a thermal store, they add system volume and regulate temperature changes, ensuring a more consistent and reliable operation across heating and cooling applications.
Available in both mild and stainless steel, these vessels provide a flexible solution for a wide range of systems, from heat pumps and boilers through to chilled water applications.
Key features:
- Supports system efficiency by storing and releasing thermal energy as demand changes
- Highly efficient injection foam insulation
- Easy lifting and positioning features
- Available in mild or stainless steel options to suit application requirements
- Fully insulated design helps minimise heat loss and improve overall efficiency
- 2,500L to 5,000L+ sizes available
- 2 to 6 week lead time
Need to Insulate Plant Room Equipment?
Order Our Custom Fit Insulation Jackets
Insulation jackets play a vital role in improving energy efficiency while protecting personnel from burns. Alongside standard pipe and fitting insulation, discover our made-to-order insulation jackets for plant room equipment and valves with a typical lead time of 1–2 weeks.
